Precision Dom Mechanical Tubing , 120 Wall Dom Tubing For Auto Parts / Machinery

Brand Name : New Era

Model Number : ASTM A513 Type5

Certification : ISO9001,TS16949

Place of Origin : China

MOQ : 5 tons

Price : Negotiation

Payment Terms : T/T

Supply Ability : 3000 tons/month

Delivery Time : 45 days

Packaging Details : Bundles Package, Wooden Box Package

Material : 1010,1020,1045,4130

Delivery Condition : BK,BKW,BKS,GBK,NBK

OD Size : 6-168mm

WT Size : 1-15mm

Surface : Bright and Clean

Application : Mechanical purpose

Contact Now

Product Name: DOM(Drawn over Mandrel) ASTM A513 Type5 Mechanical Steel Tube
Application: For auto parts, machinery, mechanical engineer
Size(mm): O. D.: 6.0-168.0 W. T.: 1.0-15.0mm L: Max 12000mm



DOM mechanical tubing is manufactured to ASTM Specification A513

This product has tensile properties that are comparable to cold-drawn seamless steel tubing of the same steel analysis and nominal size. In addition, the DOM tubing has superior concentricity and a high degree of uniformity in wall thickness.



High Quality and Competitive Price. Welcome to contact us.




Steel Grade C
Max		 Mn P
Max		 S
Max		 Si
Max		 Cr
Max		 Mo
1008 0.10 0.30-0.50 0.035 0.035 - - -
1010 0.08-0.13 0.30-0.60 0.035 0.035 - - -
1018 0.14-0.20 0.60-0.90 0.035 0.035 - - -
1020 0.18-0.23 0.30-0.60 0.035 0.035 - - -
1026 0.22-0.28 0.60-0.90 0.035 0.035 - - -
1035 0.32-0.38 0.60-0.90 0.035 0.035 - - -
1045 0.37-0.44 0.60-0.90 0.035 0.035 - - -
4130 0.28-0.33 0.40-0.60 0.035 0.035 0.15-0.35 0.80-1.10 0.15-0.25
4140 0.38-0.43 0.75-1.00 0.035 0.035 0.15-0.35 0.80-1.10 0.15-0.25



Mechanical Properties:

Steel
Grade		 Yield Strength Tensile Strength Elongation RB RB
Ksi Mpa ksi Mpa % min max
Sink-Drawn Tubing
1008 38 262 48 331 8 65
1010 40 276 50 345 8 65
1020 50 345 60 414 8 70
1026 55 379 70 483 7 77
1035 70 483 80 552 7 82
4130 50 345 70 483 20 100
4140 65 448 90 621 20 105



Steel
Grade		 Yield Strength Tensile Strength Elongation RB RB
Ksi Mpa ksi Mpa % min max
Normalizing Tubing
1008 23 159 38 262   30 65
1010 25 172 40 276   30 65
1020 35 241 50 345   25 75
1026 40 276 60 414   25 80
1035 45 310 65 448   20 85



Steel
Grade		 Yield Strength Tensile Strength Elongation RB RB
Ksi Mpa ksi Mpa % min max
Mandrel-DrawnStress-Relieved Tubing
1008 45 310 55 379 12   68
1010 45 310 55 379 12   68
1020 55 379 65 448 10   75
1026 65 448 75 517 10   80
1035 75 517 85 586 10   85
4130 80 552 90 621 10   87
4140 95 655 105 724 10   90

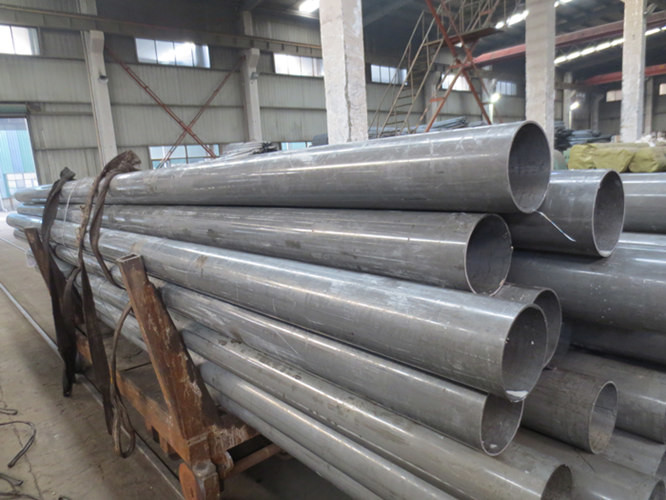

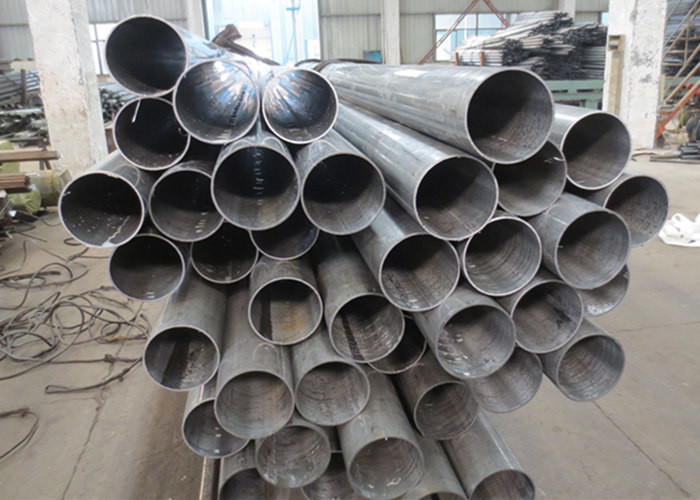

Precision Dom Mechanical Tubing , 120 Wall Dom Tubing For Auto Parts / MachineryPrecision Dom Mechanical Tubing , 120 Wall Dom Tubing For Auto Parts / MachineryPrecision Dom Mechanical Tubing , 120 Wall Dom Tubing For Auto Parts / Machinery
